If you’re an architect or developer looking into 3D printing construction method, the first question that almost always comes up is: ‘Can what we’ve designed actually be built?’ The renderings look impressive. The case studies are compelling. But the real gap — the one that determines whether a project succeeds or stalls — sits between the 3D model on your screen and a structure that’s physically sound, dimensionally accurate, and built to code.
This guide walks you through what to evaluate before committing to a project that uses freeform architectural printing: design constraints, realistic timelines, and material performance. Get these right upfront, and your project moves forward without expensive redesigns or mid-build surprises.
The clearest way to understand 3D printed construction buildability is to contrast it with how conventional formwork-based building works. In 3D printed architecture vs traditional construction, the difference is fundamental: traditional methods use formwork to hold a shape in place while concrete cures — the mold does the structural work during the pour. In the 3D printed construction method, there is no formwork. The printer deposits material continuously, and each layer has to support its own weight — plus the weight of every layer printed on top — in real time, while printing is still happening.
The printing material must flow consistently through the print nozzle while setting quickly enough to develop the early strength required to support the weight of each subsequent layer. At the same time, it must retain its shape and maintain the dimensional stability of the printed element throughout the printing process.
This is exactly why material selection is as critical as design in digital fabrication in construction. Not every cementitious product is formulated to balance early-age strength with consistent pumpability and extrudability — the two demands pull in opposite directions, and the formulation has to be engineered to satisfy both.
Understanding this from the start changes how architects approach geometry. A form that looks elegant on screen may be unprintable in practice if it includes overhangs beyond a workable angle, walls too thin to be self-supporting, or shape transitions too abrupt for the printer’s deposition rate to manage.
One of the most frequently cited advantages of 3D printing is its ability to expand design possibilities. Curves, complex geometries, and forms that would be difficult or prohibitively expensive to achieve using conventional formwork methods become much more feasible with this technology. This advantage is very real and is one of the key reasons why many architects are increasingly adopting 3D printing for decorative walls and projects that require more sophisticated or complex forms.
3D concrete printing can significantly enhance design freedom. However, there are still manufacturing limitations and production considerations that should be taken into account from the outset to ensure that the design can be successfully produced and constructed in practice.
Printed walls are not typically constructed as solid concrete sections in the same way as conventional cast concrete walls. Instead, they are generally formed by printing the wall perimeter while incorporating structural reinforcement strategies within the cavity between the wall layers. This configuration influences both structural performance and on-site installation considerations. Therefore, it should be evaluated collaboratively with the project team during the design stage to achieve the most effective outcome.
Most 3D printing systems can accommodate a certain degree of horizontal offset between successive layers, enabling the creation of curved surfaces and inclined walls. However, if overhangs or cantilevered elements exceed the practical limits of the printing system in terms of angle or span, it may be necessary to modify the geometry or introduce temporary support structures during the printing process.
Window openings, door openings, connections to concrete slabs or steel structures, as well as provisions for building services and utilities, should be planned and integrated into the printing process from the outset. This ensures that the printing strategy can be coordinated effectively with other building components and construction systems.
Most importantly, the earlier discussions around printability and construction feasibility take place during the design process, the greater the opportunity to achieve an outcome that fully realizes the original design intent.
Speed is one of the most frequently cited advantages of the layer-by-layer construction method. Structures that would traditionally involve weeks of formwork, pours, curing, and stripping can in many cases be completed through a continuous automated construction printing process in a fraction of that time. But accurately evaluating the construction printing project timeline requires understanding where the speed actually comes from — and where it doesn’t.
Where time is genuinely saved: eliminating formwork construction and removal; reducing the skilled labor required for the structural shell; and the ability to run. The automated construction printing process can operate continuously for extended periods, subject to equipment availability, material supply, site conditions, and project requirements. — rather than being tied to standard labor shift constraints.
Where time stays roughly the same: design development, structural engineering sign-off, material procurement and logistics, finishing trades (electrical, plumbing, interior fit-out), and any conventional structural elements the project still requires.
For developers comparing 3D printed architecture vs traditional construction on a timeline basis. The structural shell of a printed building can often be completed more quickly than comparable formwork-based construction methods. However, the overall project duration still depends on site preparation, services coordination, finishing works, and regulatory approvals.
3D printed construction feasibility depends on more than geometry alone. It is equally influenced by the performance and long-term properties of the material once construction is complete. For this reason, selecting a material partner with specialized expertise and experience plays a critical role in ensuring that a design can be translated into a buildable solution while meeting long-term performance requirements.
Key material properties for 3D printing applications include:
– Early strength and compressive strength performance. The material needs sufficient early-age strength to support continued printing without deformation, and long-term compressive strength comparable to standard building materials for the structure’s intended use. These are core printed concrete structures benefits that should be verified with performance data.
– Climate adaptability.
Environmental conditions such as temperature and humidity can significantly influence material behavior during printing, as well as the dimensional stability and shape retention of the printed element. As a result, material formulations are often tailored and optimized to suit the specific environmental and climatic conditions of the project location.
– Surface finish quality.
This is one of the areas where material performance can make a significant difference. Conventional 3D printed concrete often produces relatively rough surfaces with limited consistency in surface appearance. In contrast, mortar formulations developed specifically for architectural 3D printing applications can deliver smoother finishes and finer surface details, making them better suited for projects where the printed surface remains exposed as part of the architectural expression.
– Sustainability credentials.
For projects with environmental objectives, the use of low-carbon materials, combined with the precision of the 3D printing process, can contribute significantly to resource efficiency. By depositing material only where it is required to achieve the intended geometry, 3D printing enables more precise material usage and helps reduce unnecessary resource consumption and production waste throughout the manufacturing process.
This is exactly the set of performance variables that SCG’s 3d printing mortar formulation for layer-by-layer construction has been engineered to address — developed over more than 10 years of dedicated R&D by SCG, one of Asia’s largest and longest-established cement manufacturers with over 100 years of industry experience.
SCG’s product for digital fabrication in construction arrives on site as a patented, pre-blended dry mix produced under controlled manufacturing conditions. Your team adds water at the specified ratio — that’s it. This approach delivers consistent material properties from batch to batch, reliable pumpability and extrudability through the print head, and significantly reduced risk of mixing errors that cause nozzle blockages or weak inter-layer bonding. The automated construction printing process stays moving with fewer interruptions and less batch-to-batch variability.
Core performance characteristics that support 3D printed construction buildability:
– High compressive strength and high early strength — layers support continued printing immediately without deformation
– Low shrinkage and low water permeability — dimensional stability and long-term durability
– Engineered workability — easy to pump and optimized for extrusion in robotic construction printing systems
– Environmental durability comparable to standard cementitious building products across a range of conditions
SCG’s 3D printing mortar formulations are climate-adapted — developed for specific temperature and humidity profiles rather than generic all-condition performance. For sustainable freeform architectural printing projects in tropical climates, or across the varied conditions of Southeast Asia and other international markets, this project-specific approach is a meaningful advantage.
On aesthetics, the formulation is available in two finishes: a natural clay tone — warm and characterful, suited to 3D printed café and resort design, hospitality façades, and feature walls — and a classic grey for contemporary or industrial architectural expressions. Both are engineered to make printed architectural elements a design feature in their own right.
Looking at where the layer-by-layer construction method has delivered the clearest results helps identify whether your own project is a strong candidate:

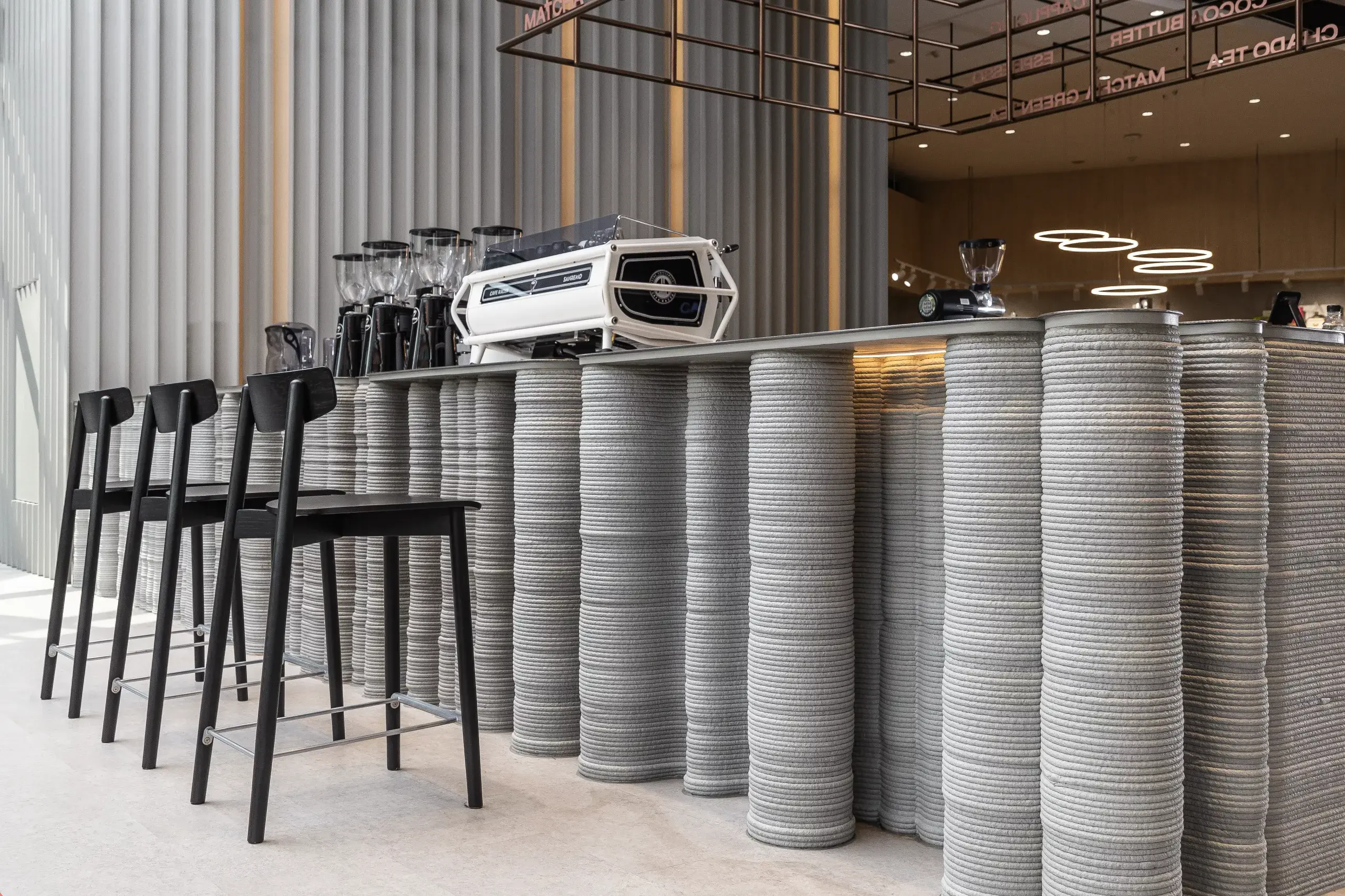

Cafés, resort buildings, and pool villas are among the project types that can benefit significantly from the design flexibility offered by freeform architectural printing. These projects are typically smaller in scale, benefit enormously from the photogenic architectural forms that printed curves and sculptural elements deliver, and have design-to-completion cycles that suit the technology’s strengths. SCG’s completed project references — including Espressoman Café, Ember Café, the Thai Embassy project in Saudi Arabia, medical facility projects, Bangkok Design Week installations, and Ong Ang Canal Bridge demonstrate the range of applications achievable with 3D concrete printing technology. — demonstrate what purpose-formulated material achieves in terms of surface quality and design precision at real project scale.

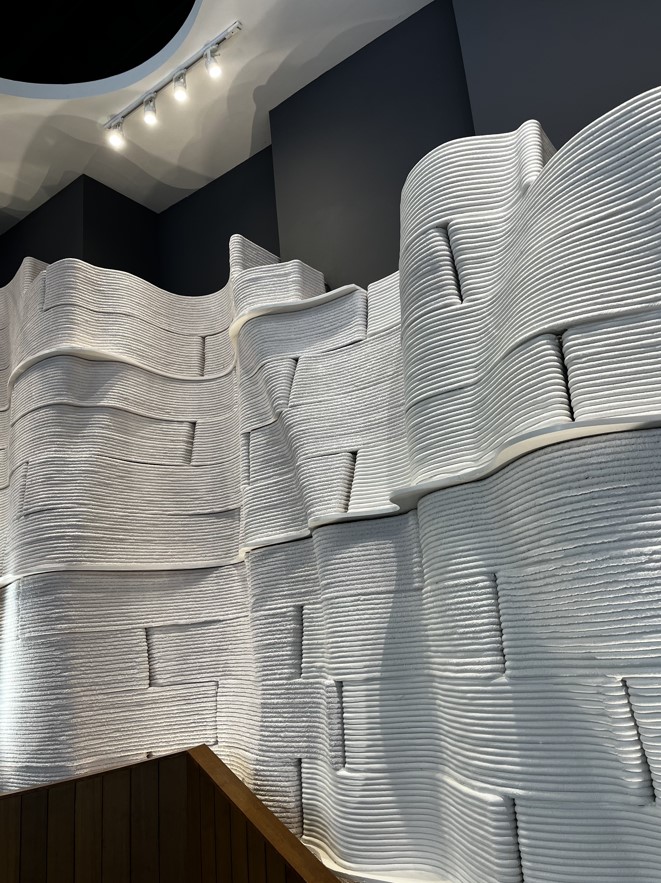

Using robotic construction printing for a feature wall, an iconic entrance element, or a bespoke screen within a larger conventionally built structure is one of the strongest current applications. 3D printed facade design captures the design freedom benefit of digital fabrication in construction without requiring the entire structural system to be printed.
An emerging application of sustainable additive construction, particularly relevant for disaster relief housing, where the speed of the automated construction printing process and reduced labor dependency address project constraints directly.
A lower-risk entry point for project teams evaluating the layer-by-layer construction method and a material system’s finish quality before committing to a full structural application. SCG’s Bangkok Design Week furniture installation and the Bangkok Bridge project demonstrate the range of printed architectural elements the technology can produce — from exhibition-scale pieces to civic infrastructure.
Applications such as benches, planters, signage, and landscape architectural features can help create a distinct identity while adding character and visual interest to environments.
The honest evaluation question for developers is not whether this technology is simply better — it’s whether your project’s scale, geometry, and construction printing project timeline align with where digital fabrication in construction currently delivers the clearest advantage.
Work through these questions with your printing technology and material partner before finalizing design resources:
– Confirm design geometry against the printer’s practical limits for overhangs, wall thickness, and curve radius — during schematic design, not after.
– Identify what gets printed vs. what gets built conventionally — foundations, slabs, and roof structures are typically conventional even in largely printed buildings.
– Request material performance data matched to your project’s climate and use case — early strength, compressive strength, water permeability, and durability benchmarks.
– Discuss surface finish expectations explicitly — especially if the printed architectural elements will be visible architecture rather than a concealed substrate.
– Map a realistic construction printing project timeline — separate shell printing time from total delivery time including services, finishes, and approvals.
– Ask about low-carbon material options if the project has sustainable additive construction or green building certification requirements.
Teams that work through this checklist early consistently execute more smoothly than those who lock in a design first and check printing compatibility afterward. SCG’s consultation service covers all of these dimensions — from Architectural design review, structural coordination, material selection, printer compatibility checks, and technical support throughout the construction process through material selection and printer compatibility checks, to on-site technical support from first layer to final finish.
The single biggest factor in a successful project using the layer-by-layer construction method isn’t the ambition of the design. It’s how early the 3D printed construction buildability conversation happens relative to the design process. Projects that bring digital fabrication in construction expertise into the room during concept and schematic design consistently avoid the redesign cycles, cost overruns, and schedule slippage that affect projects where printing is treated as a late-stage fabrication decision.
If you’re an architect, developer, or project owner exploring whether freeform architectural printing is the right fit for an upcoming project, the most useful next step is a direct technical conversation — one that addresses your specific design intent, project climate, scale, and construction printing project timeline, not a generic product overview.
SCG 3D Printing Mortar is ready to consult from the very first stage of design, with a team of specialists who bring hands-on experience from real projects across Thailand and internationally. Whether your project is a small café, a commercial building façade, or a large-scale structure, the team is ready to help you select the right mortar formulation, verify printer compatibility, and support your build from the very first layer to the last.
3D printed construction buildability refers to the ability of a design to be successfully produced using a layer-by-layer construction process while maintaining its intended geometry, dimensional accuracy, and structural stability throughout printing.
Because 3D concrete printing deposits material without the support of conventional formwork, each layer must develop sufficient early strength to support subsequent layers as the structure is being built. This creates practical considerations around factors such as overhang angles, wall thicknesses, and geometry transitions.
Architects who consider these constraints during the schematic design stage, rather than after the design has been finalized, can reduce redesign efforts and improve the overall efficiency of the project delivery process.
The printing phase of a 3D construction project can often be completed more quickly than comparable formwork-based construction methods due to the automation and efficiency of the layer-by-layer printing process. However, the overall project timeline still depends on factors such as foundation works, building services coordination, finishing trades, and regulatory approvals.
Cafés, resort buildings, hospitality structures, and pool villas are among the project types that can benefit significantly from the design freedom offered by 3D concrete printing, particularly where distinctive architectural forms and customized geometries are desired. 3D printed façade elements and architectural components integrated within larger conventional structures also represent an important application area, enabling greater design flexibility without requiring an entirely printed building. In addition, modular housing, emergency or temporary structures, as well as bespoke furniture and decorative elements, continue to expand the range of potential applications for 3D concrete printing technology.
The key advantages of printed concrete structures include the reduced reliance on formwork, which can help lower both material consumption and labor requirements, as well as the ability to produce complex geometries that would be difficult, time-consuming, or prohibitively expensive to achieve using conventional construction methods.
The layer-by-layer construction process also enables a higher degree of automation and more precise material placement, supporting a more efficient construction workflow and helping to reduce unnecessary material usage and production waste.
When combined with purpose-formulated materials developed specifically for architectural 3D printing applications, the technology can also deliver smoother surface finishes and finer details than conventional 3D printing mixes, particularly where printed layers are intended to remain visible as part of the architectural expression.
Environmental conditions such as temperature, humidity, and sun exposure can significantly influence material behavior during robotic construction printing. To address these variations, SCG develops different mortar formulations tailored to the environmental and climatic conditions of each project location, supporting more consistent material performance across Southeast Asian and international project environments.
