Q-CON AAC Wall Panels
Starts with a smarter wall.
Means Fewer delays. Less labor. More control.
Build faster and smarter with our AAC Panels solution engineered for precision and performance. Reduce installation time, cut labor costs, and achieve flawless results every time. Because the future of construction starts with innovation you can control.
Q-CON AAC Wall Panels
One Wall. Endless Possibilities.
Q-CON AAC Wall Panels represent the future of construction materials, surpassing traditional AAC blocks with its innovative design and superior benefits. These larger-sized panels facilitate faster construction while offering numerous advantages in performance, cost savings, project efficiency, and carpet area maximization.
Lead with innovation.
Deliver durability & value that lasts.
Whether you’re a developer, an architect, a designer, a builder or a wall installer, Q-CON AAC Panels deliver exceptional advantages in terms of performance, cost & time saving and project efficiency.

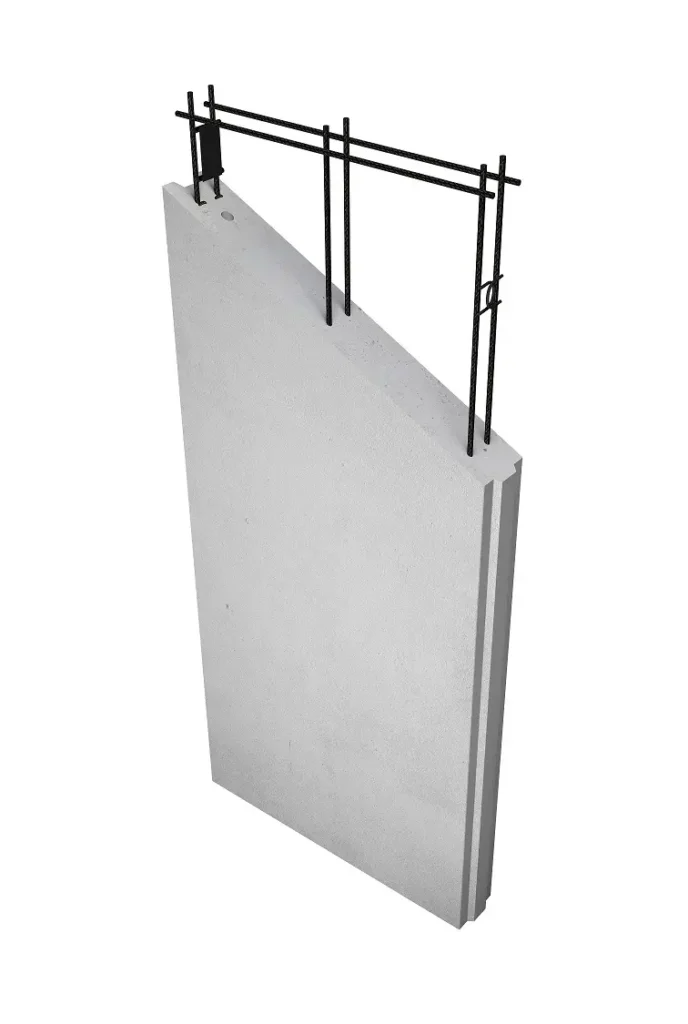

Wire Mesh Specification
Q-CON Ready Made Wall Panel has a double high strength wire mesh ST50 (Yield 500 Mpa). Can resist the bending moment (Design load 150 kg/sq.m).
Size & Dimension
Width : 600 mm
Length : 2,400 – 4,000 mm
Thickness : 75, 100, 125, 150, 200, 250 mm
Why Use Q-CON Wall Panel ?
Carpet Area
Maximize usable space with efficient design, optimizing the carpet area for enhanced functionality and comfort.
Speed of Construction
Swift and streamlined construction processes ensure timely project completion without compromising quality.
Lower Finishing Cost
Cost-effective solutions for finishing, offering budget-friendly options without compromising on aesthetic appeal or durability.
Sound Transmission
Advanced sound transmission control for a quieter and more comfortable living or working environment.
Knocking Sound
Innovative construction materials and techniques minimize knocking sounds, contributing to a peaceful and undisturbed atmosphere.
Thermal Insulation
Optimal thermal insulation solutions for energy efficiency, maintaining comfortable indoor temperatures while reducing environmental impact.
Specification & Standard
| Product Property | Wall Panel | Standard |
|---|---|---|
| Dry Density | 550-650 Kg/m3 | IS – 2185 (Part III) |
| Working Density | 600-700 Kg/m3 | |
| Wind Load | 50-180 Kg/m2 | |
| Compressive Strength | >4 N/mm2 | IS2185(partIII) |
| Water Absorption | <33% | by mass |
| Fire Rating | Up to 4 hr | 100mm. thickness wall panel / BS476 Part 20 and 22 :1987 |
| Thermal Conductivity (k) | 0.115 W/mk | |
| Sound Insulation (STC) | 38 - 43 dB | |
| Reinforce steel tensile strength | > 500 N/mm2 | |
| Weight | 70 kg/m2 | 100 mm thickness wall panel |

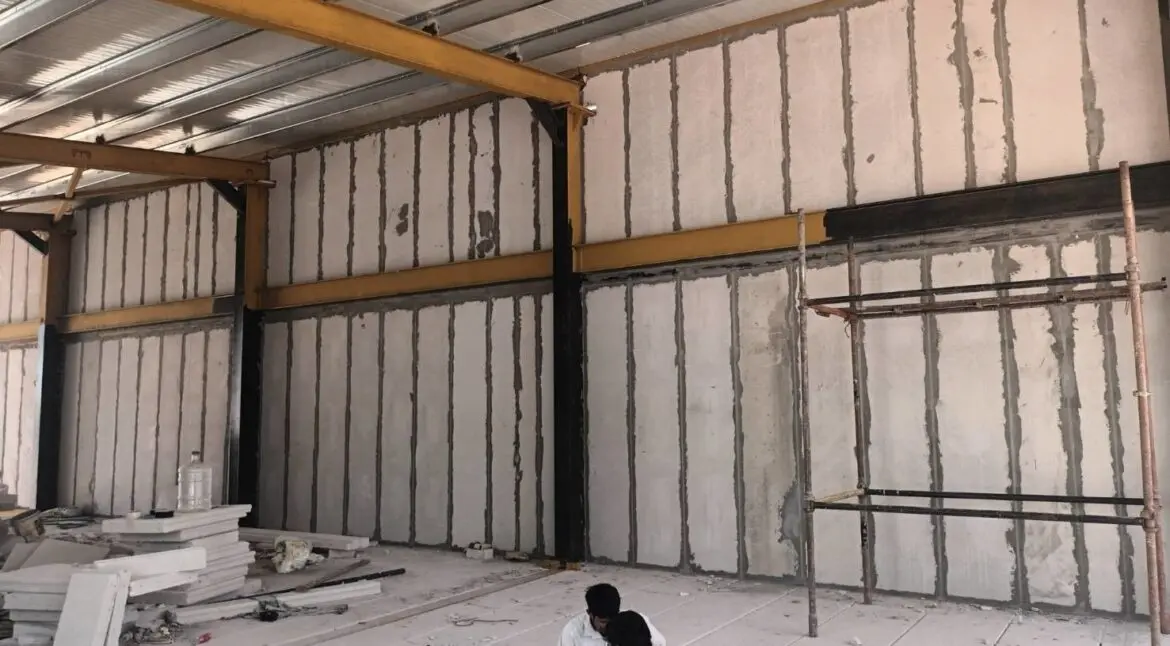

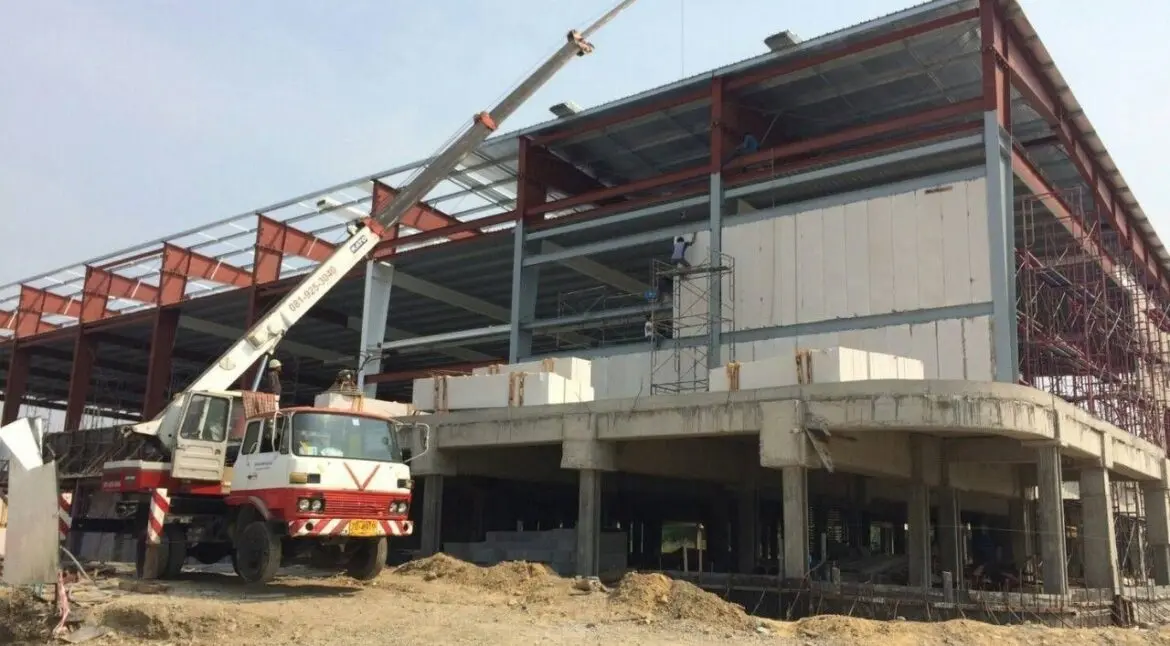

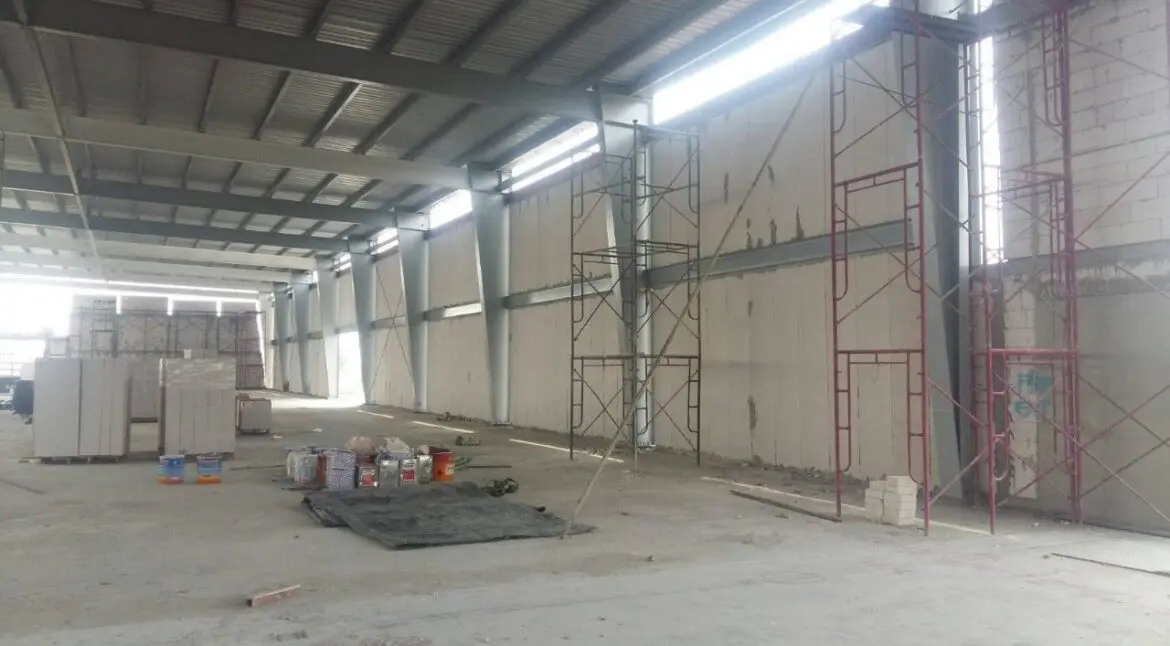

Inspire for Your Next Projects

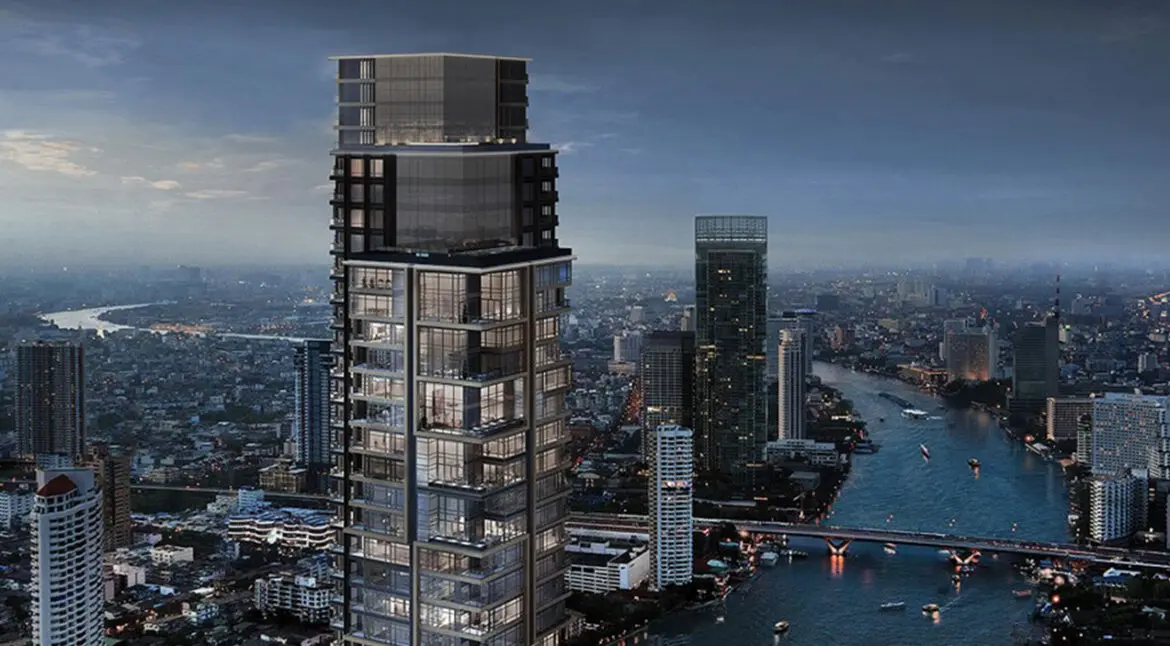

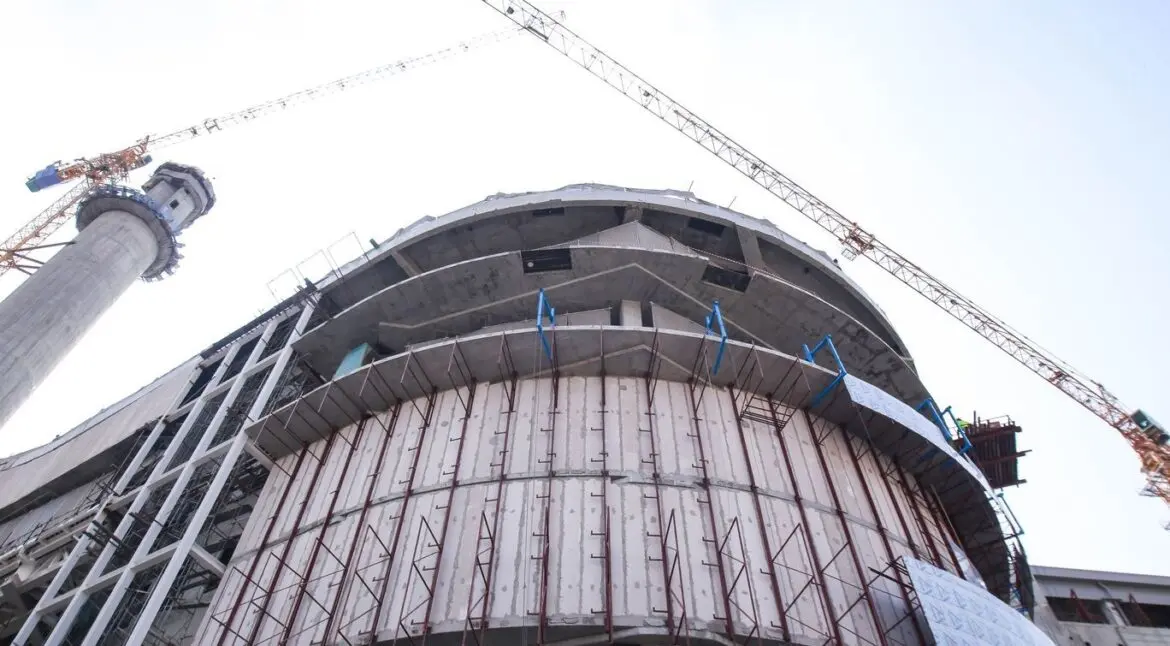

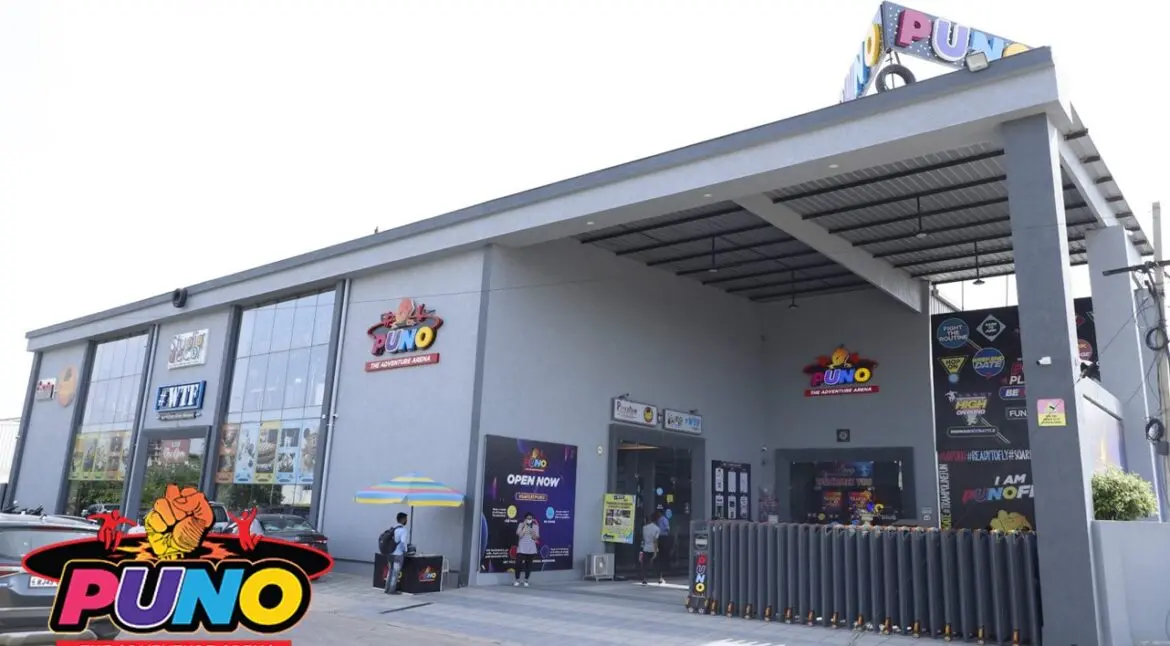

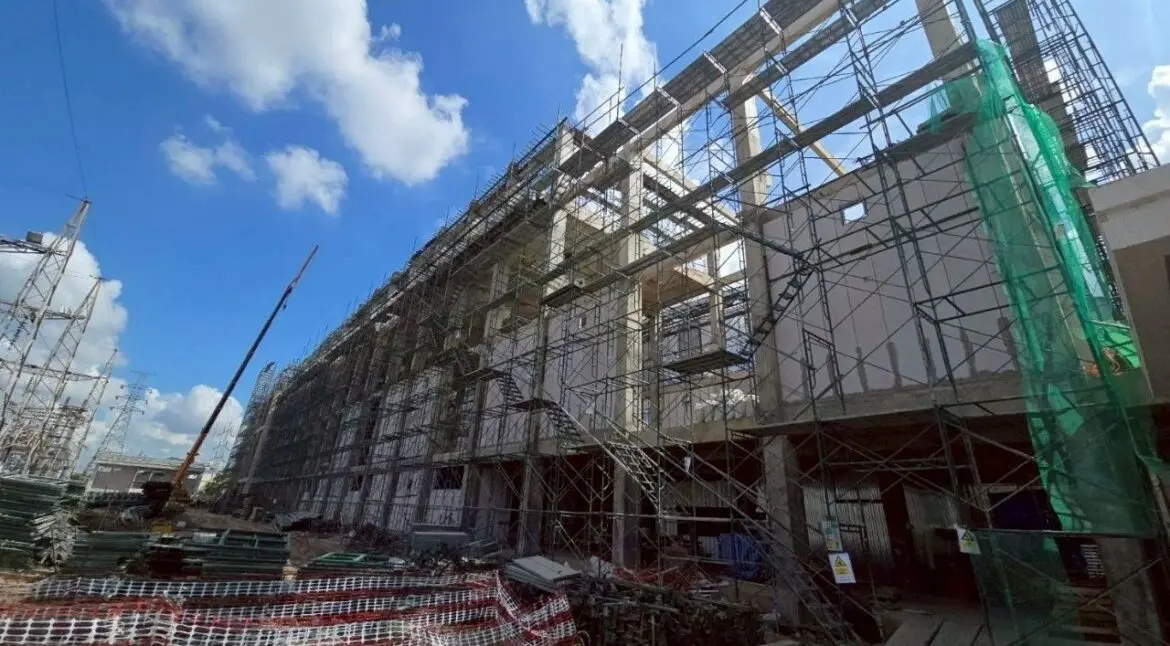

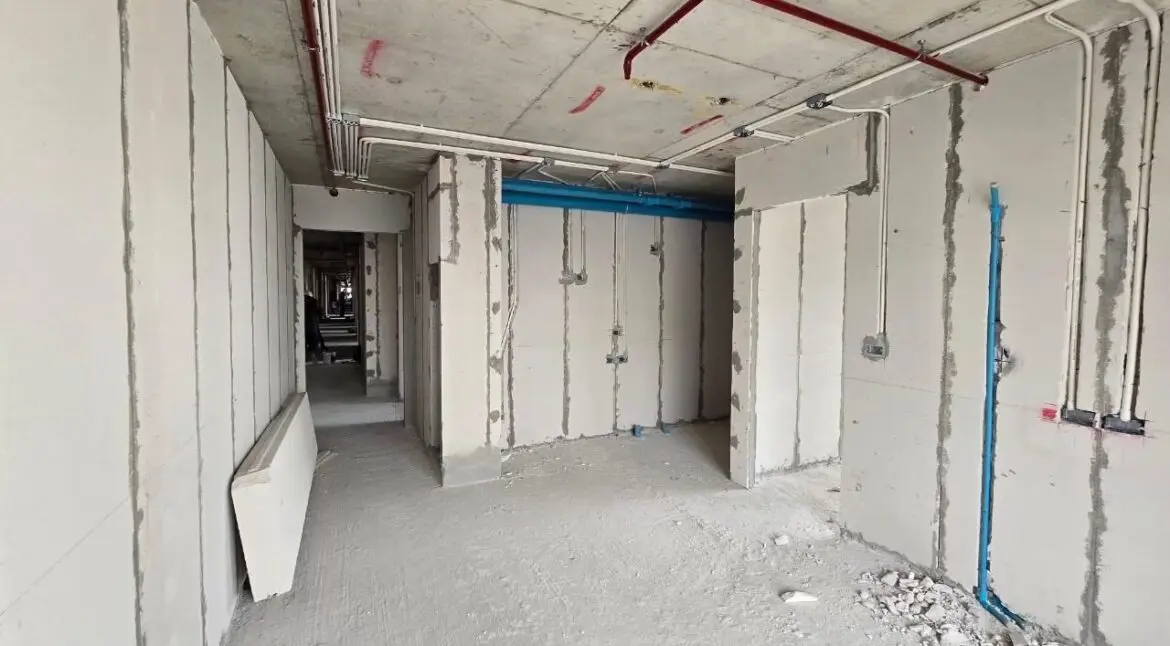

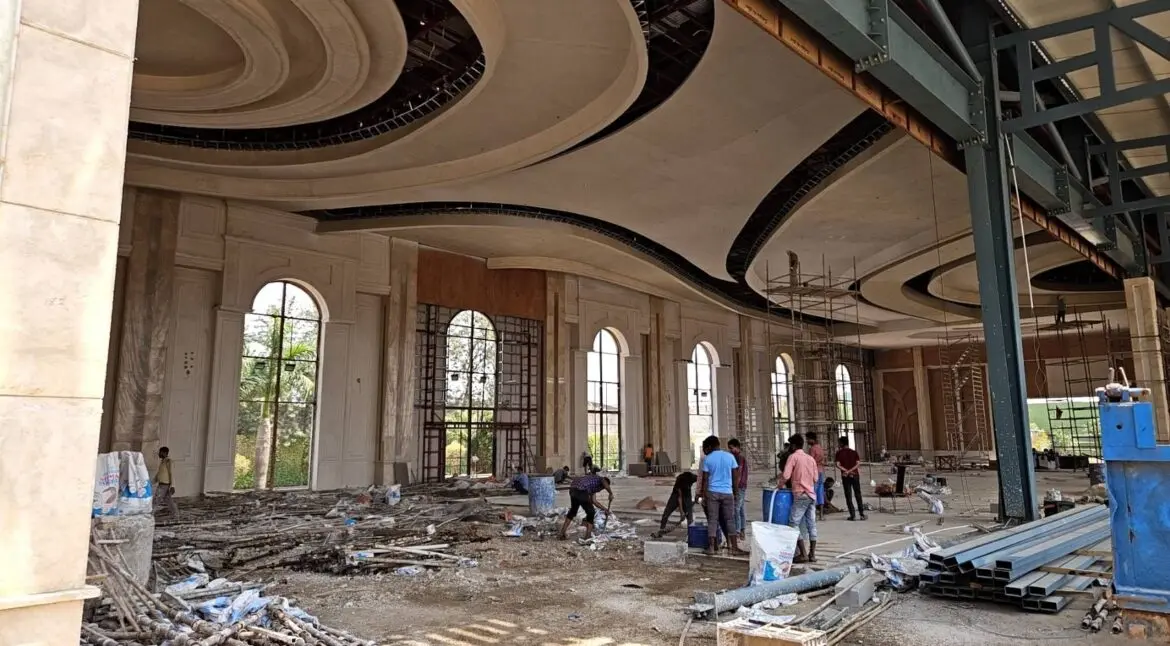

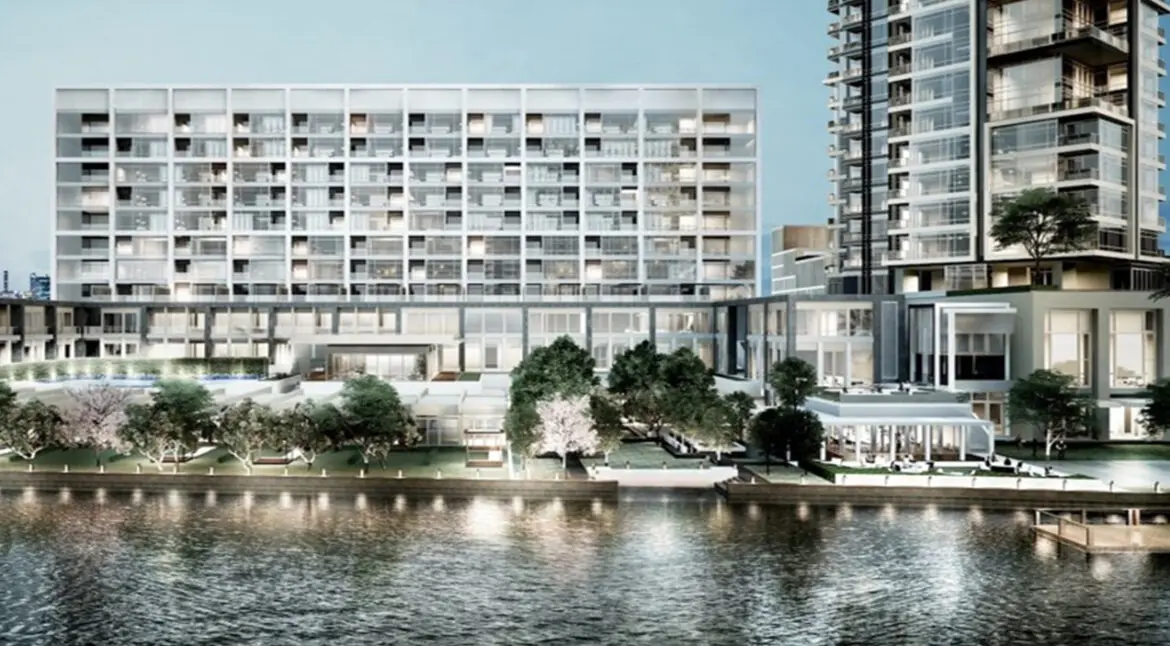

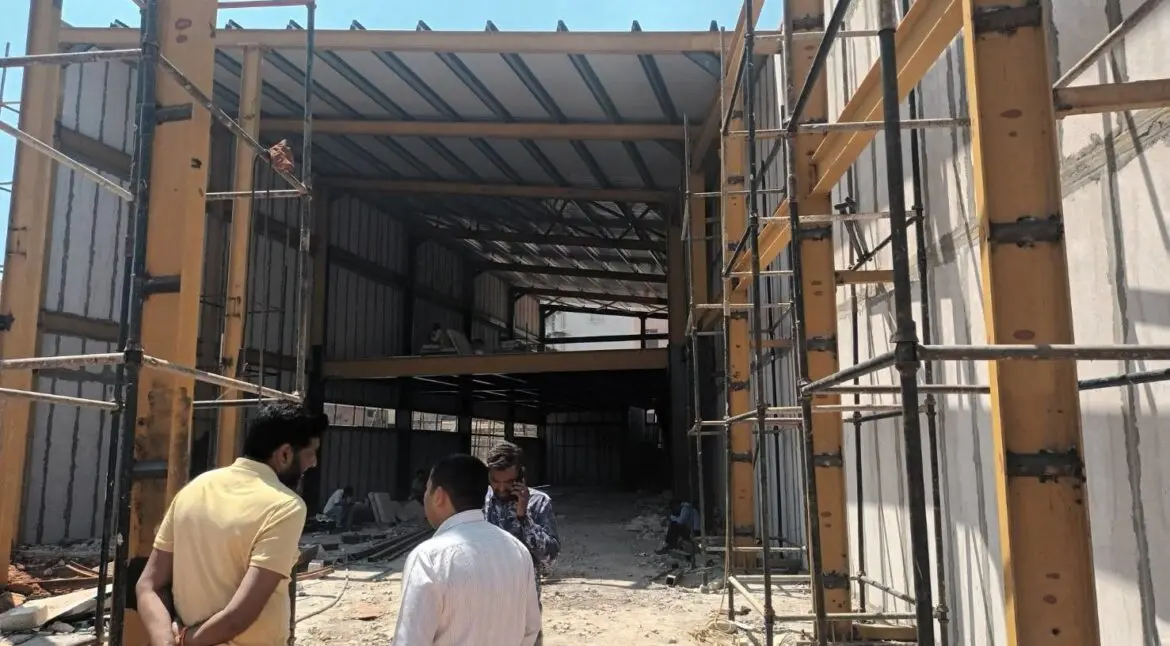

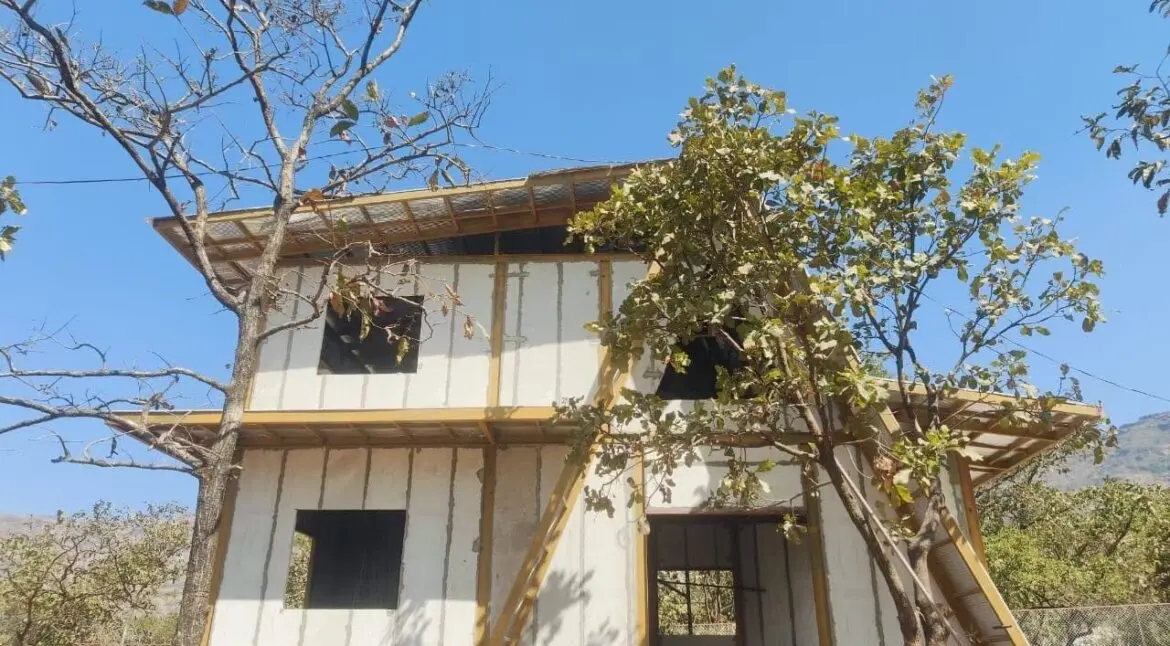

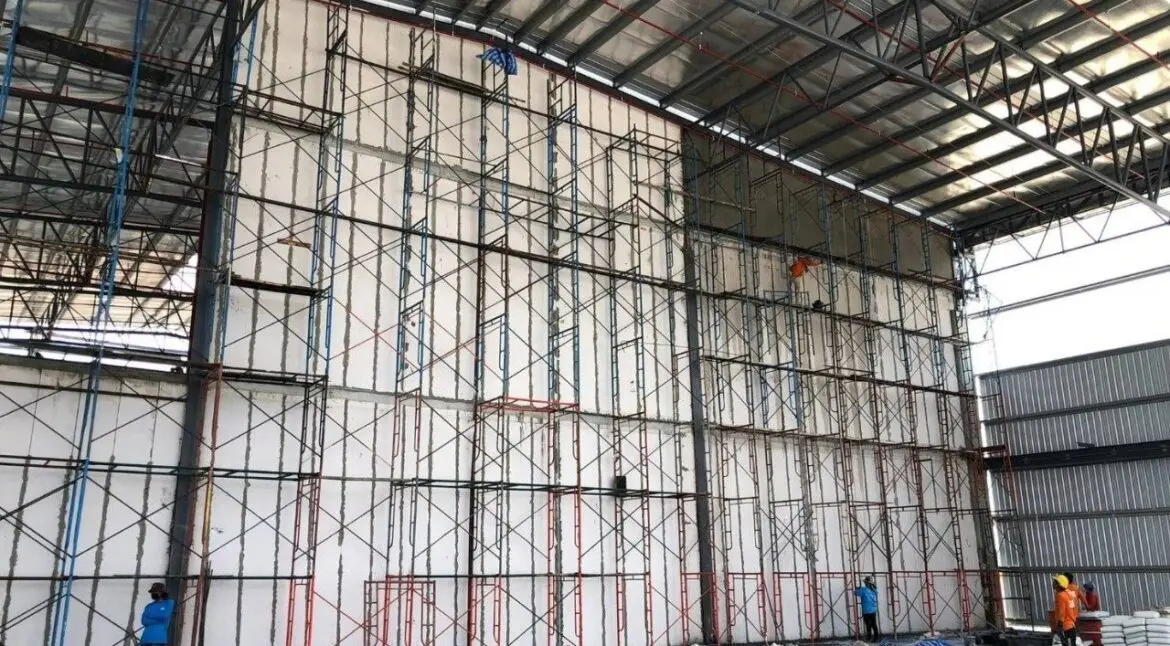

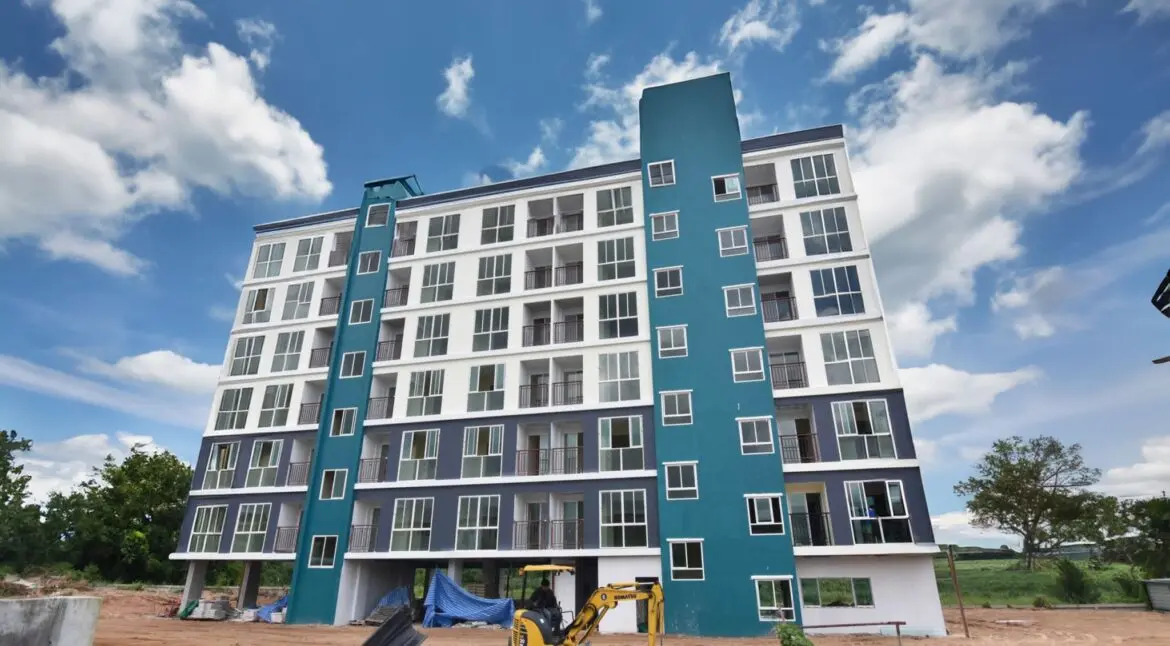

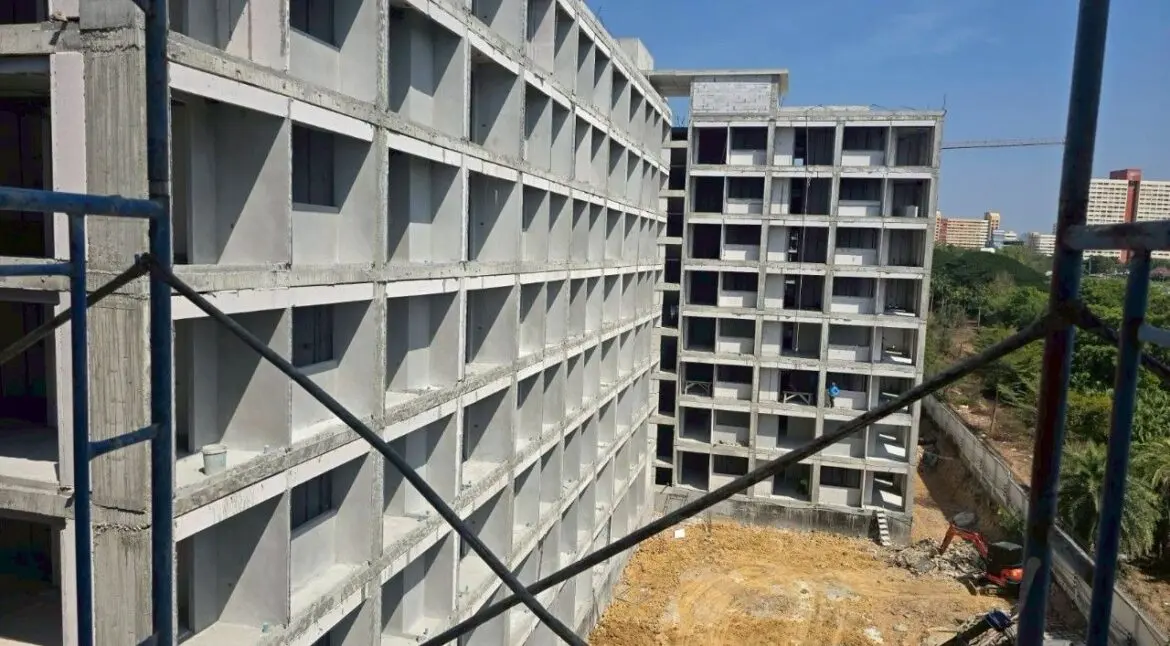

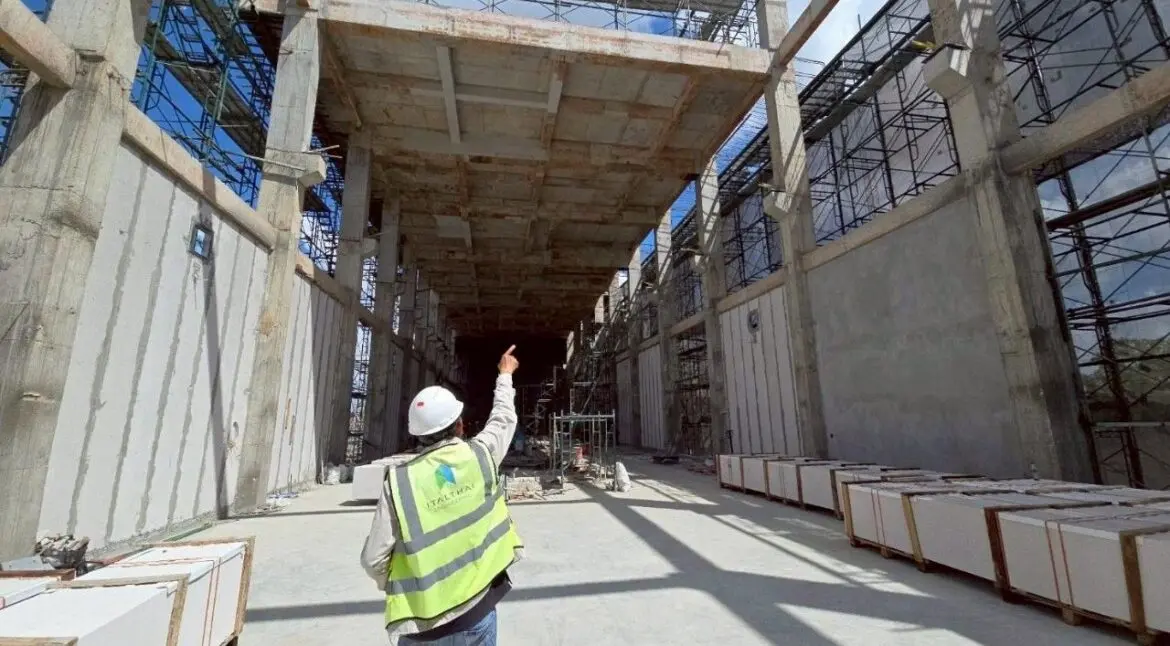

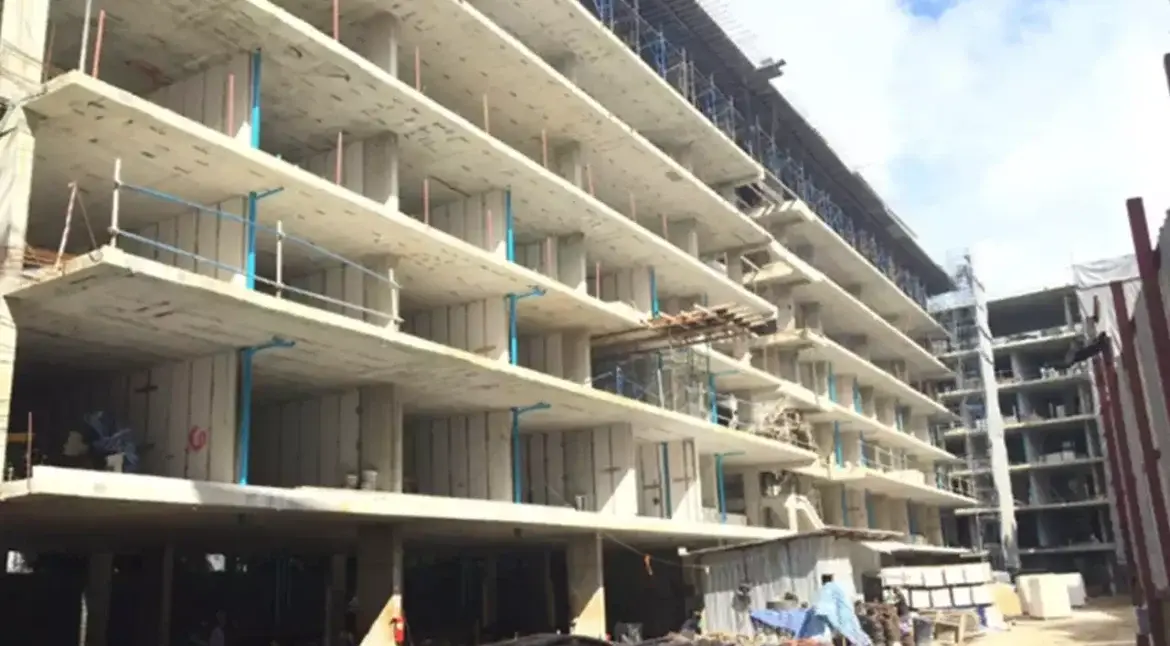

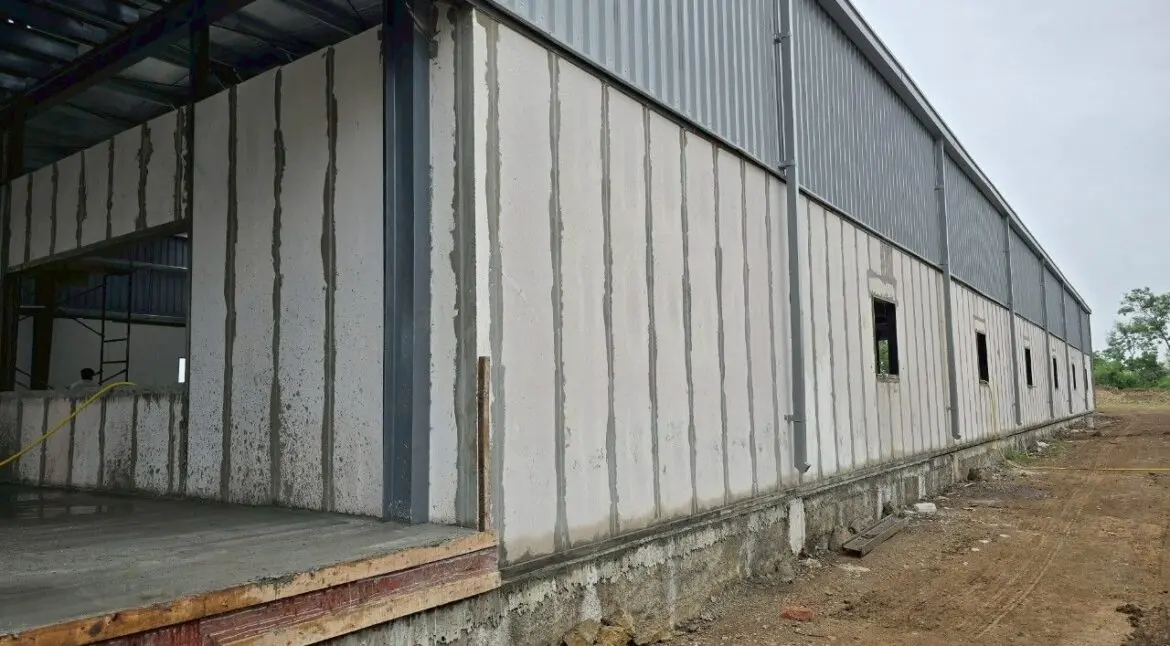

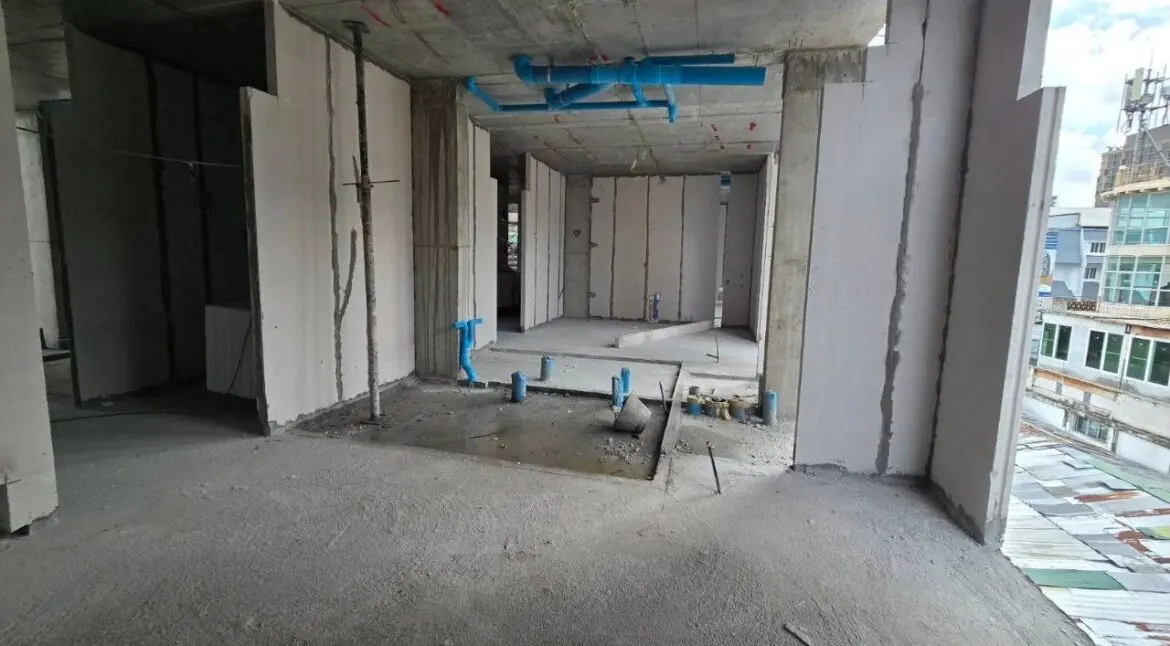

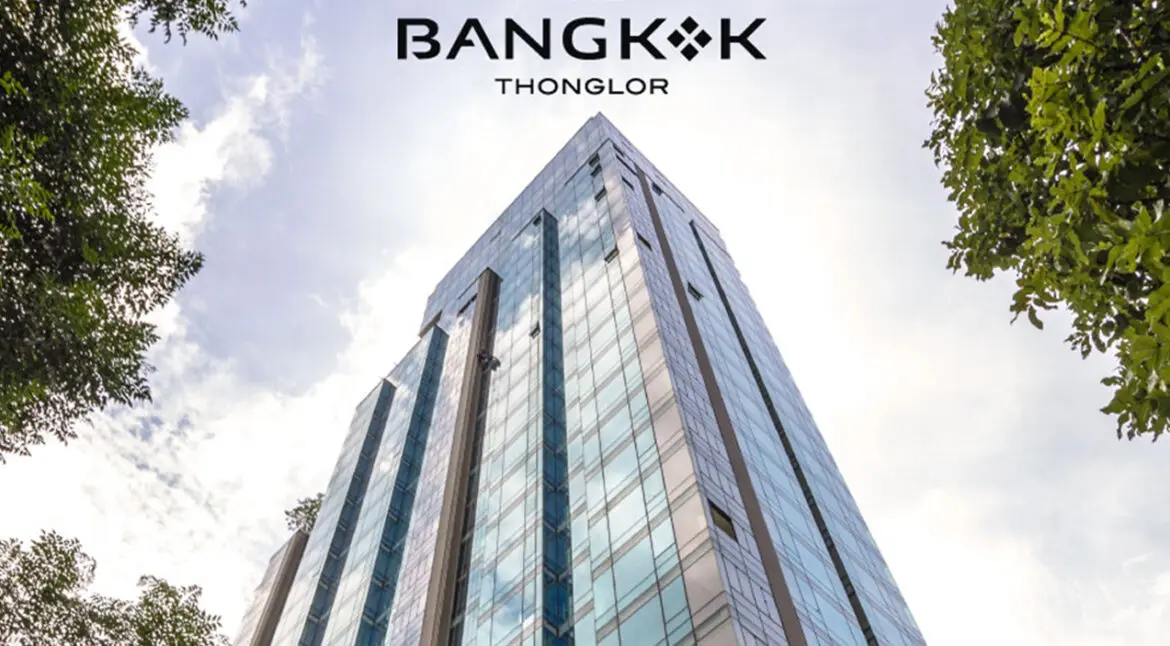

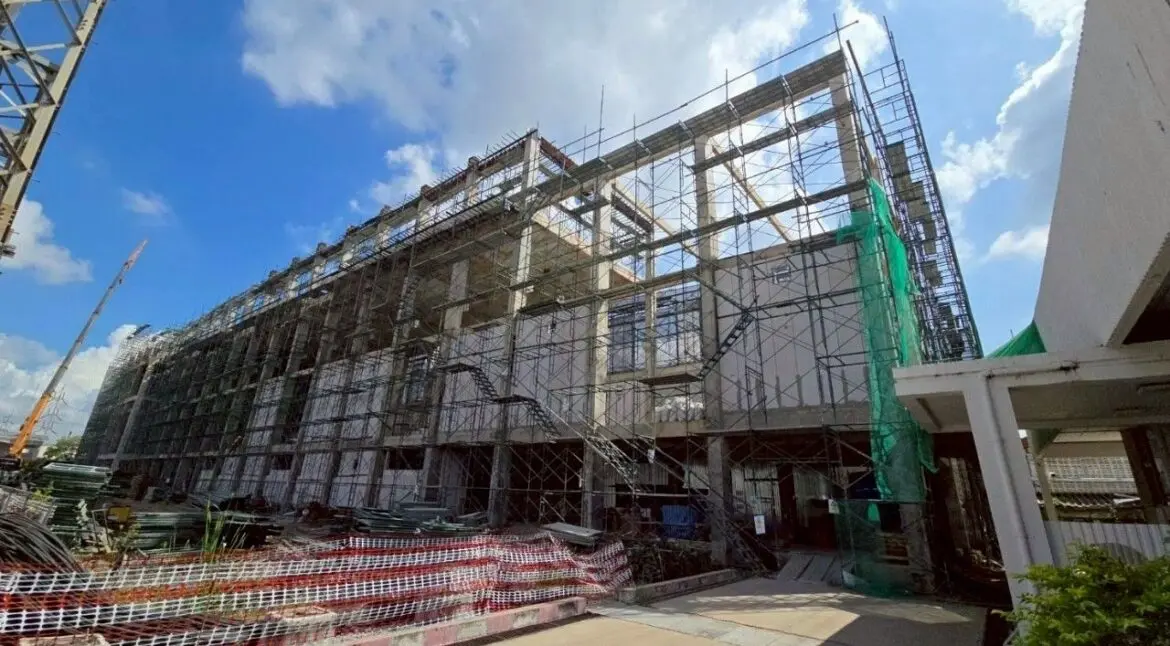

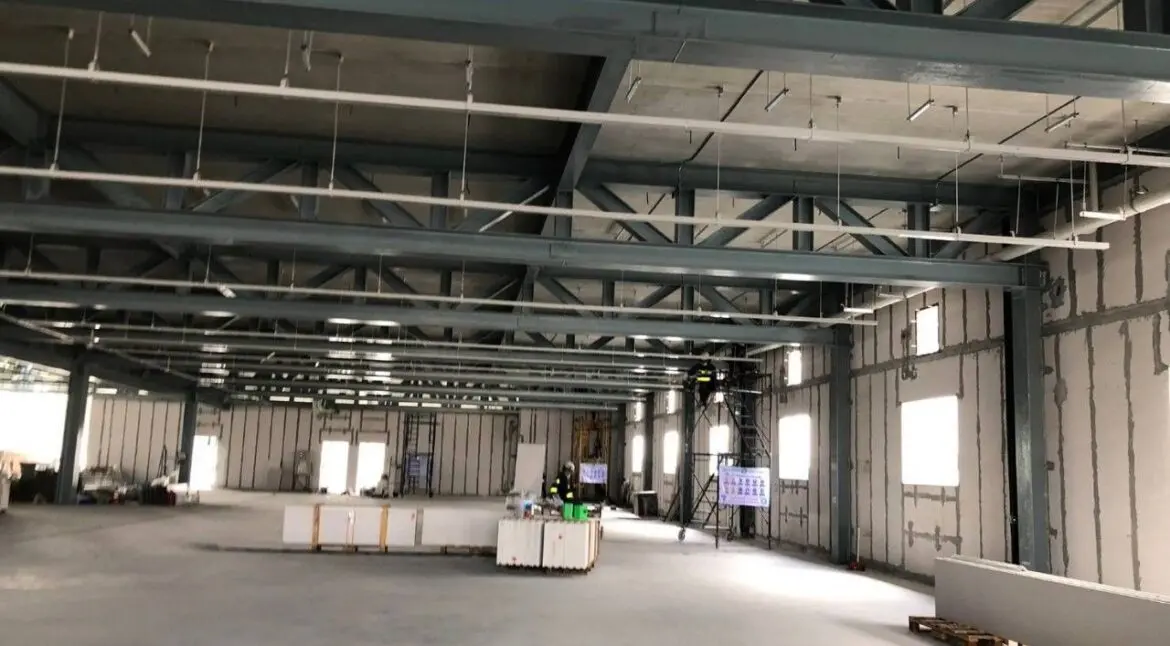

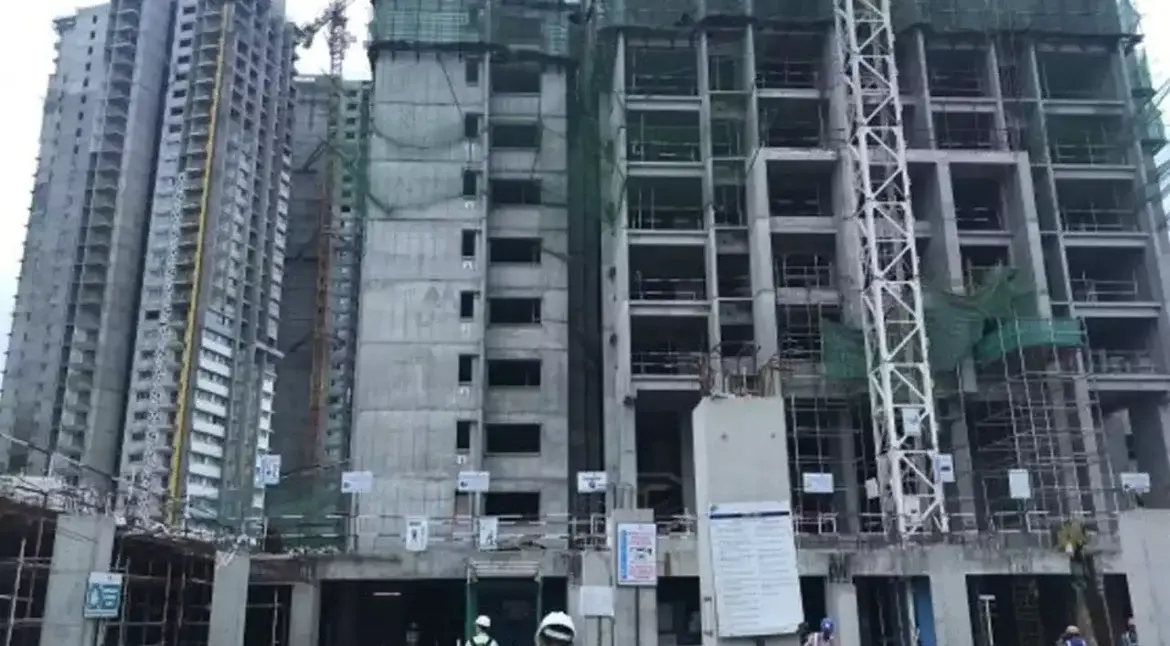

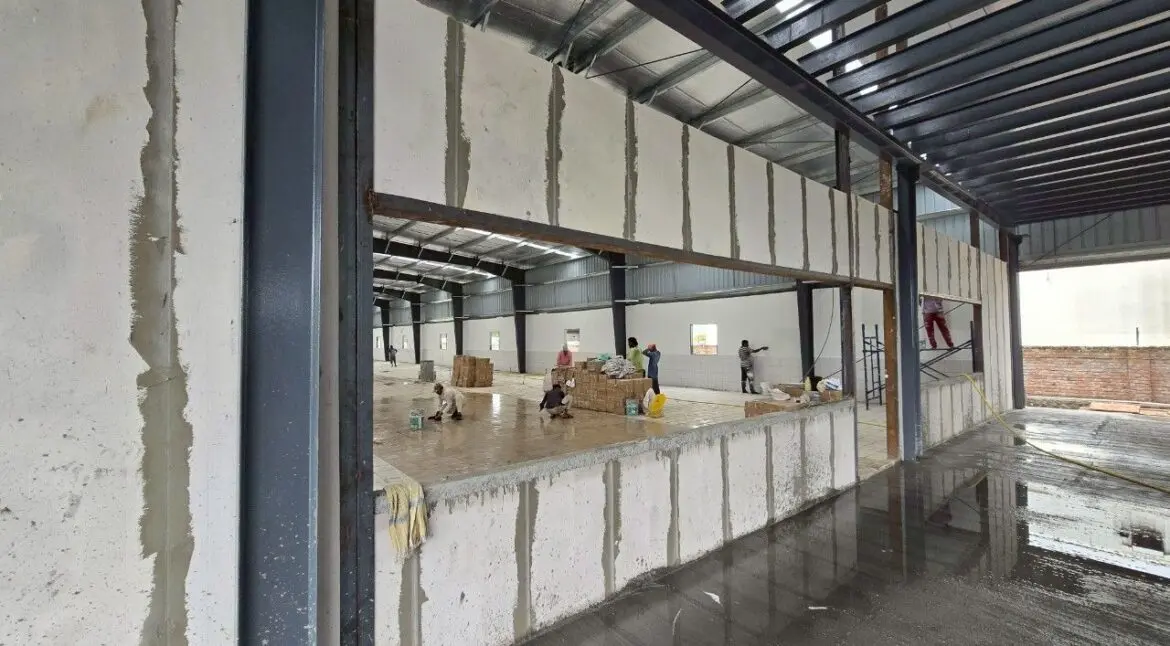

High-Rise • Community Mall • Hotel Resort • PEB Structure • Hospital

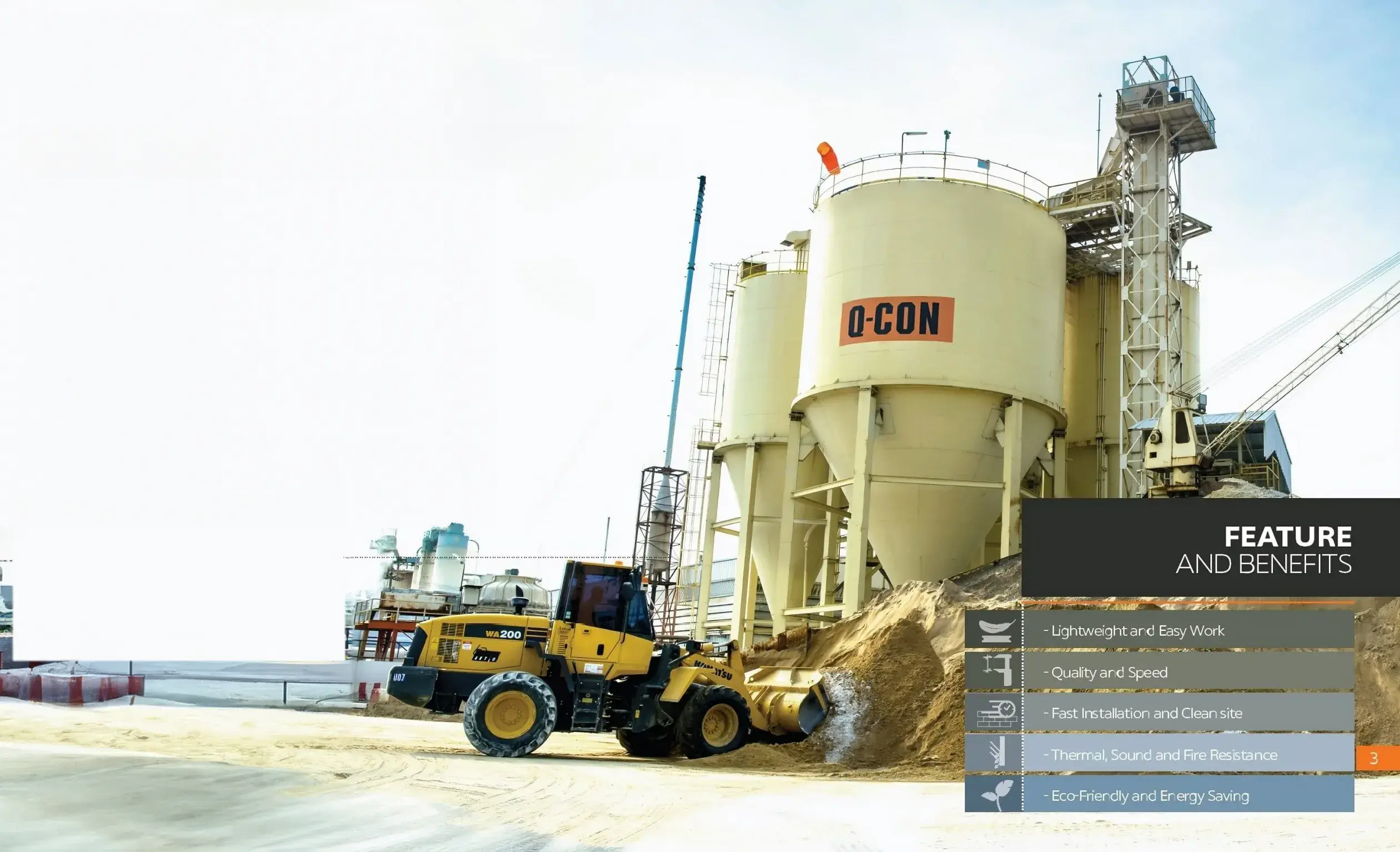

About Q-CON
Q-CON, established in 1994, is located on 55 rai of land in Bang Pa-in Industrial Estate. Phra Nakhon Si Ayutthaya. Produces autoclaved aerated concrete with advanced production technology from Germany. Our
products are recognized in the property development industry and being widely used in the construction of all types of buildings. At present, the production capacity has been expanded to support the continuously
increasing product dernand, the 5th Q-CON Factory is located at Nong Khae Industrial Estate Saraburi. Q-CON produces autoclaved aerated concrete for domestic sales and also exports to foreign countries.
We

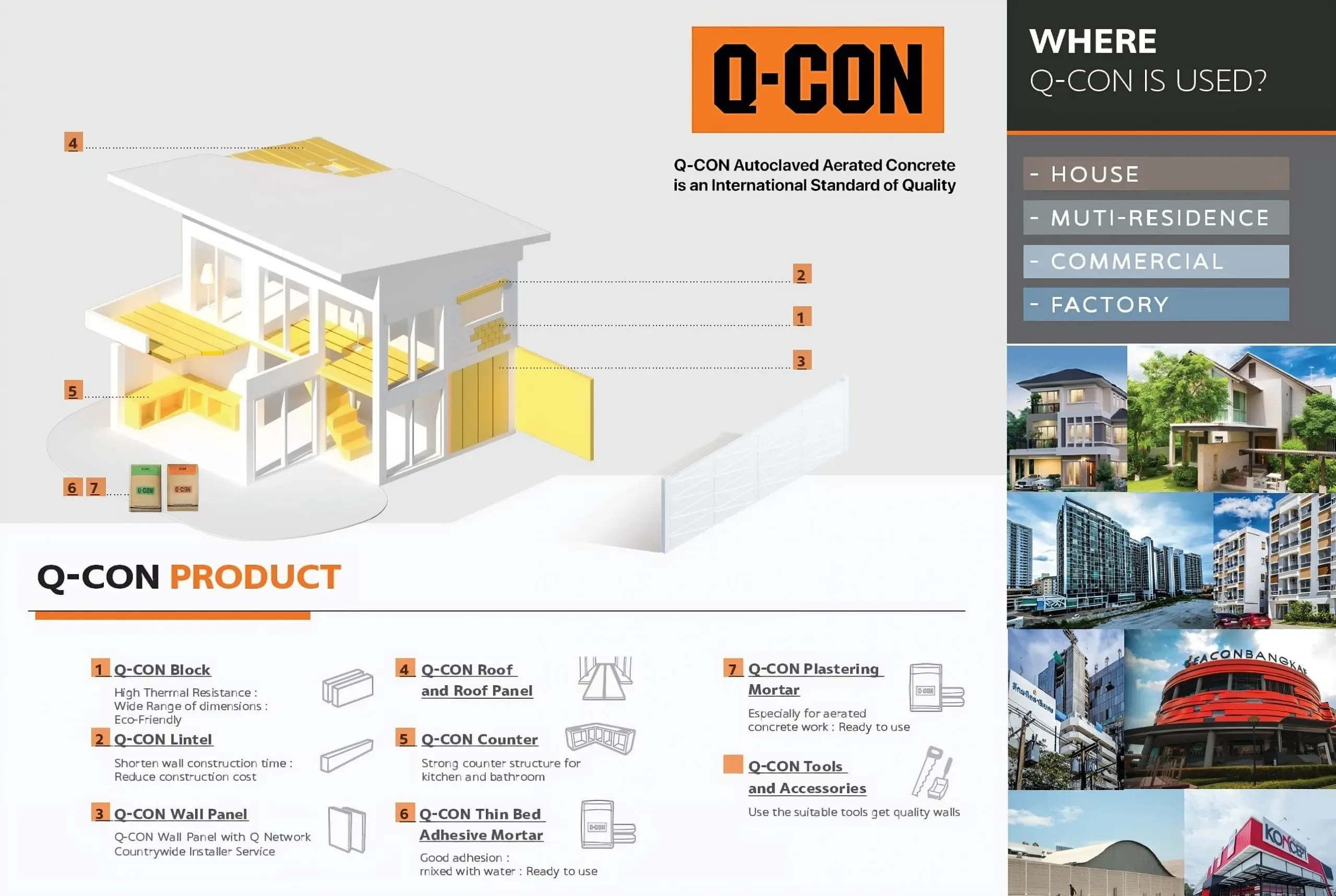

provide a full range of products both non-reinforced types such as blocks in various sizes and steel reinforcernent types such as Lintel, Wall Panel, Floor
Panel and Stair. In addition, Q-CON has cement products especially used for lightweight concrete such as Thin Bed Adhesive Mortar and Rendering
Mortar as well as tools and accessories to help work more easily, such as notched trowel, hammer, hand saw and metal strap etc. Q-CON autoclaved aerated concrete is made from natural raw materials, including Portland cement, sand, lime, gypsum, water and special ingredients in the ratio of the Cement Base formular, which is the unique technology of Q-CON. Certified
by TIS. 1505-2541 and TIS. 1510-2541.
About Q-CON
Q-CON is a AAC Wall Panel Manufacturer, established in 1994, is located on 55 rai of land in Bang Pa-in Industrial Estate. Phra Nakhon Si Ayutthaya. Produces autoclaved aerated concrete with advanced production technology from Germany. Our
products are recognized in the property development industry and being widely used in the construction of all types of buildings. At present, the production capacity has been expanded to support the continuously
increasing product dernand, the 5th Q-CON AAC Wall Panel Factory is located at Nong Khae Industrial Estate Saraburi. Q-CON produces autoclaved aerated concrete for domestic sales and also exports to foreign countries.
We
provide a full range of products both non-reinforced types such as blocks in various sizes and steel reinforcernent types such as Lintel, AAC Wall Panel, Floor
Panel and Stair. In addition, Q-CON has cement products especially used for lightweight concrete such as Thin Bed Adhesive Mortar and Rendering
Mortar as well as tools and accessories to help work more easily, such as notched trowel, hammer, hand saw and metal strap etc. Q-CON autoclaved aerated concrete is made from natural raw materials, including Portland cement, sand, lime, gypsum, water and special ingredients in the ratio of the Cement Base formular, which is the unique technology of Q-CON Ready Made Wall Panels. Certified
by TIS. 1505-2541 and TIS. 1510-2541.
Explore more products
We are the leading AAC Wall Panel manufacturer who supply high quality building materials worldwide. Discover our complete product range today!
